Truck Brake And Suspension Parts

The brake and suspension systems on a Class 8 truck are the two most safety-critical systems on the vehicle. They are also among the highest-wear systems on any commercial truck — subject to constant load, heat, vibration, and road shock across hundreds of thousands of miles. Understanding the key truck brake and suspension parts, their service intervals, and the top brands for replacement components is essential knowledge for every fleet manager, owner-operator, and heavy duty technician.

This guide covers the complete brake and suspension systems for Class 8 trucks — every major component, how it works, when to replace it, and which brands deliver the best performance and longevity.

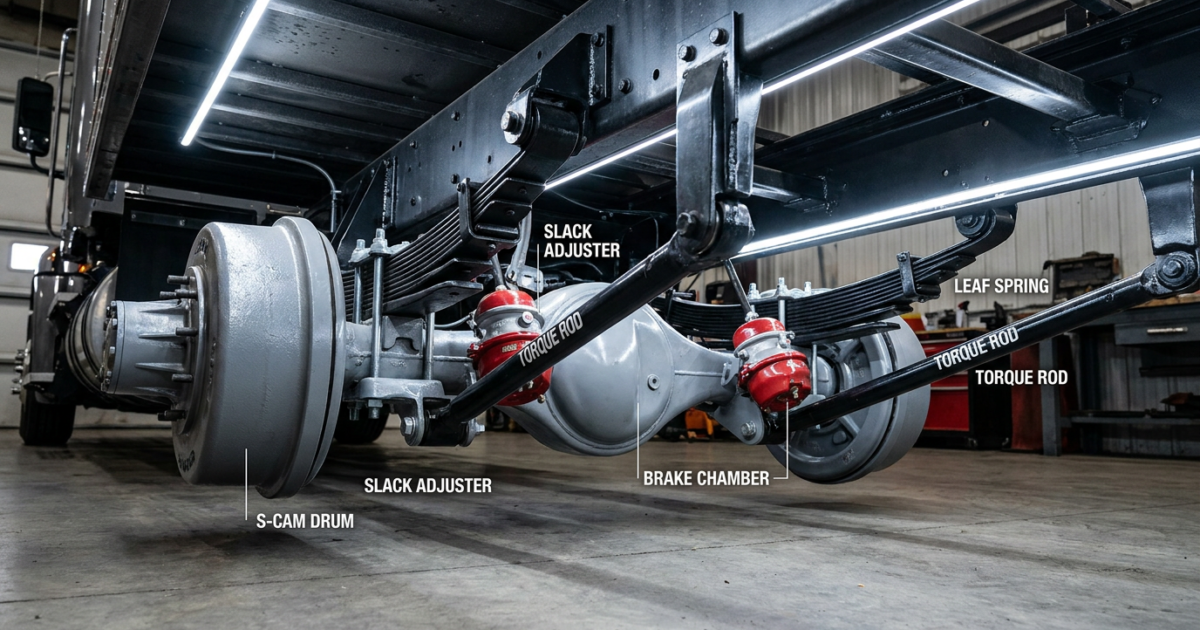

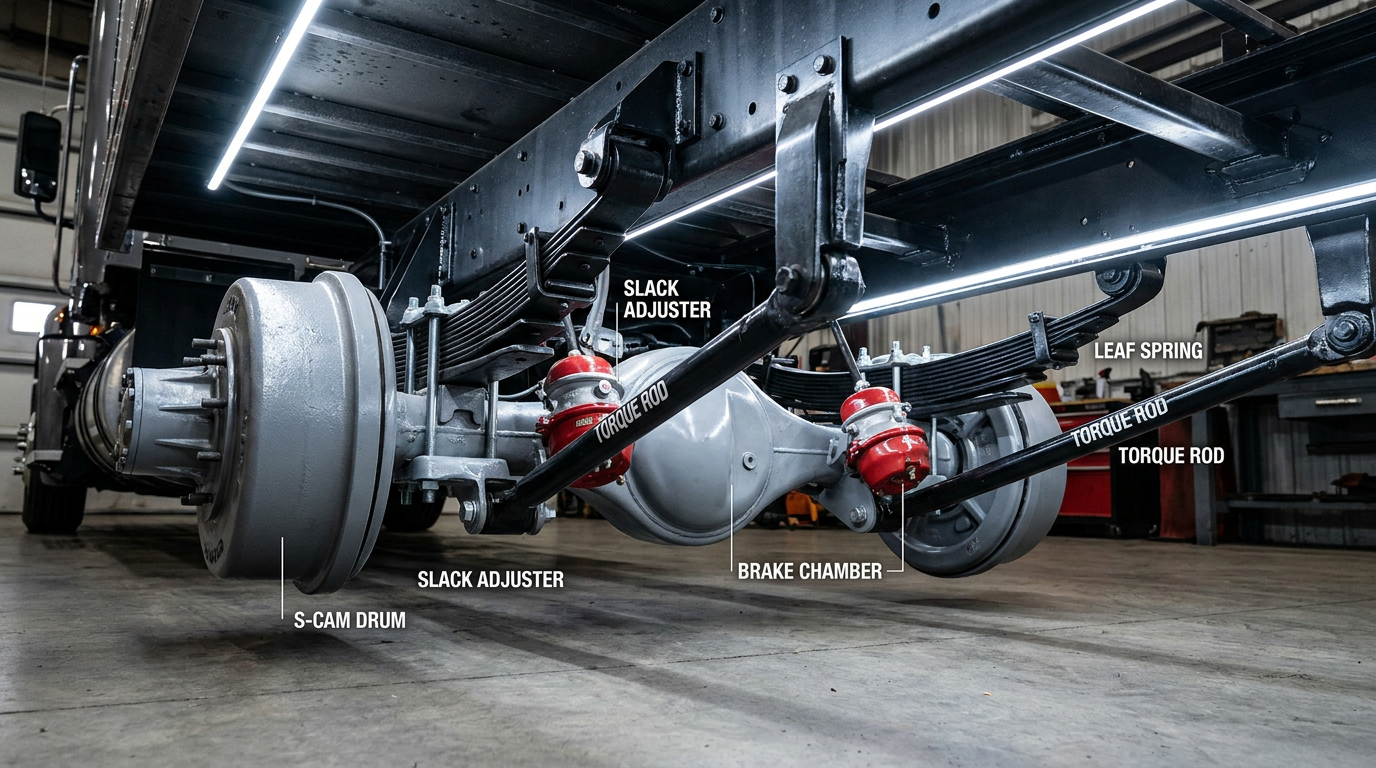

truck brake and suspension parts — labeled undercarriage diagram of a heavy duty semi truck showing S-cam drum brake slack adjuster brake chamber red torque rods and leaf spring suspension pack on rear axle — Key truck brake and suspension parts labeled on a heavy duty semi truck undercarriage — S-cam drum, slack adjuster, brake chamber, torque rod, and leaf spring are the core components of every Class 8 brake and suspension system

Complete guide to truck brake parts

S-Cam Drum Brake System

Find Related Results →

Sponsored

The S-cam drum brake is the standard brake system on the drive and trailer axles of virtually every Class 8 truck in North America. Understanding each component is essential for proper maintenance and replacement.

Brake drums — Cast iron drums that rotate with the wheel hub. The brake lining presses against the inside of the drum to create friction and stopping force. Replace when worn to minimum thickness (stamped on the drum) or when cracked, heat-checked, or out-of-round. Top brands: Gunite, Webb, Accuride.
Brake shoes and linings — The friction material that contacts the drum. Replace when lining thickness reaches 1/4 inch (6mm) or less. Always replace in axle sets — never one side only. Top brands: Bendix, Meritor, Haldex.
S-cam and camshaft — The S-shaped cam rotates to push the brake shoes outward against the drum. Inspect for wear at the cam head and camshaft bushings at every brake service. Worn cam heads cause uneven lining wear and reduced braking force.
Slack adjusters — Automatic slack adjusters (ASAs) maintain proper pushrod travel as brake linings wear. Inspect at every PM for proper operation — a slack adjuster that is not self-adjusting is a brake defect. Top brands: Haldex, Meritor, Gunite.
Brake chambers — Air-actuated chambers that convert air pressure into mechanical force to apply the brakes. Spring brake chambers (piggyback chambers) on drive axles also serve as the parking brake. Replace immediately if leaking or if the diaphragm is ruptured. Top brands: Bendix, Haldex, MGM Brakes.
Brake hardware kit — Return springs, anchor pins, rollers, and retaining clips. Replace at every brake reline. Worn return springs cause brake drag and accelerated lining wear.

Disc Brake System (Air Disc Brakes)

Air disc brakes (ADB) are increasingly standard on steer axles and are growing in adoption on drive axles. They offer shorter stopping distances, more consistent fade resistance, and longer service intervals than drum brakes.

Brake rotors — Vented cast iron rotors that rotate with the wheel hub. Replace when worn to minimum thickness or when showing deep scoring, cracking, or heat discoloration. Top brands: Bendix, Knorr-Bremse, Haldex.
Brake pads — The friction material that clamps against the rotor. Replace when pad thickness reaches the minimum wear indicator. Always replace in axle sets. Top brands: Bendix, Meritor, Wabco.
Brake calipers — The hydraulic or air-actuated clamp that squeezes the pads against the rotor. Inspect for leaks, seized pistons, and guide pin wear at every brake service. Top brands: Knorr-Bremse, Haldex, Bendix.
ABS sensors and tone rings — Anti-lock braking system sensors monitor wheel speed and prevent wheel lockup during hard braking. Inspect sensor wiring and tone ring condition at every brake service. Top brands: Bendix, Wabco, Meritor WABCO.

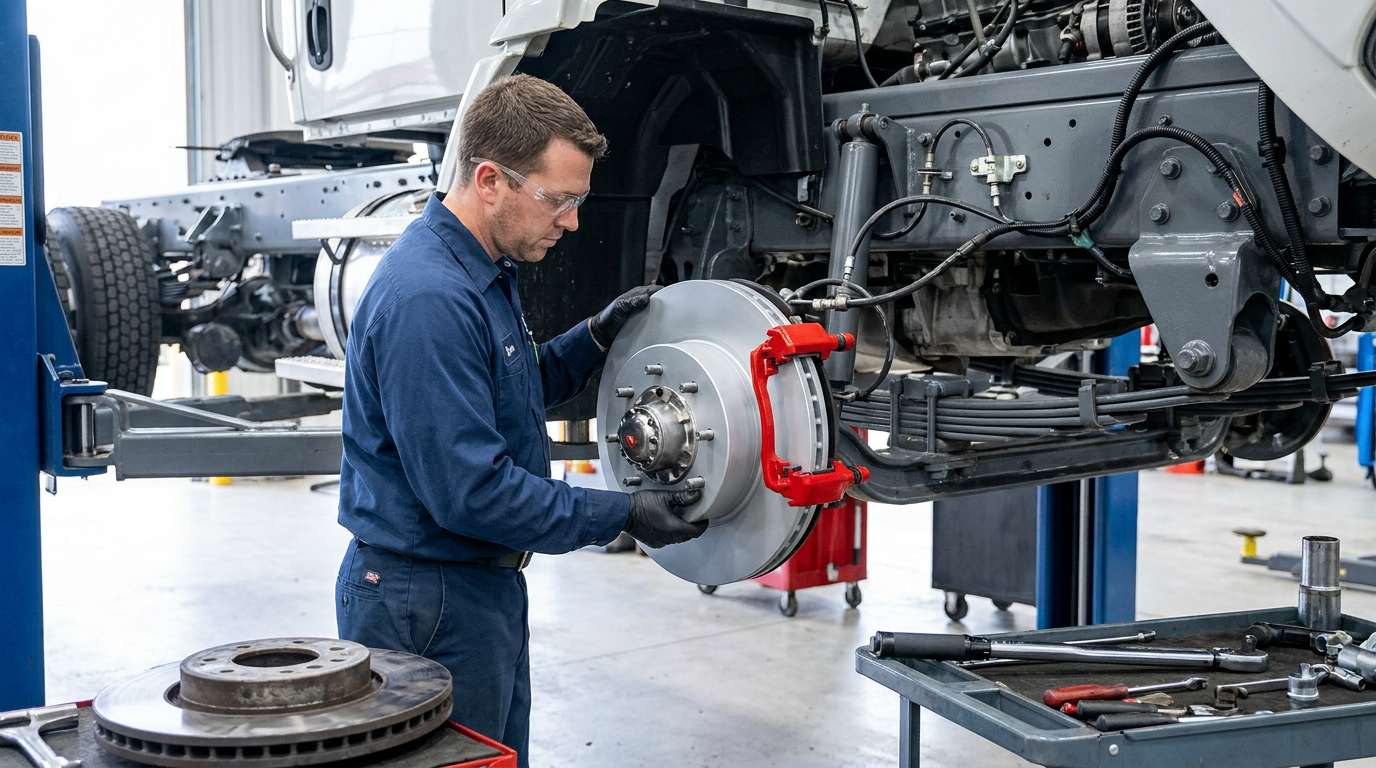

truck brake and suspension parts — mechanic in blue uniform with safety glasses installing a new silver disc brake rotor with red caliper on a heavy duty commercial truck raised on a shop lift with old worn rotor on floor — Installing new disc brake rotors and calipers on a heavy duty truck — disc brakes offer shorter stopping distances and longer service intervals than traditional drum brake systems

Complete guide to truck suspension parts

Leaf Spring Suspension

Search more topics

Multi-leaf spring suspension remains the most common rear suspension system on Class 8 trucks due to its simplicity, durability, and load-carrying capacity.

Leaf spring packs — Multi-leaf steel spring assemblies that support the axle and absorb road shock. Replace when springs are cracked, broken, or have lost arch (sagged). Top brands: Hendrickson, Reyco Granning, Watson & Chalin.
U-bolts — High-strength bolts that clamp the spring pack to the axle housing. Always replace U-bolts when removing the spring pack — never reuse U-bolts. Torque to specification using a calibrated torque wrench.
Spring hangers and brackets — Frame-mounted brackets that support the front and rear of the spring pack. Inspect for cracks, elongated bolt holes, and weld failures at every PM.
Spring pins and bushings — The pivot points at the front and rear of the spring pack. Replace when worn — loose spring pins cause axle misalignment, tire wear, and handling problems. Top brands: Moog, Hendrickson, Reyco.

Air Ride Suspension

Air ride suspension is standard on most modern Class 8 tractors and is increasingly common on trailers. It provides a smoother ride, better load leveling, and reduced cargo damage compared to leaf spring systems.

Air springs (air bags) — Rubber and fabric air bladders that support the vehicle load and absorb road shock. Replace when cracked, leaking, or collapsed. Always replace in pairs. Top brands: Firestone, Goodyear, Continental.
Height control valves — Maintain constant ride height by adding or exhausting air from the air springs as load changes. Replace when the truck cannot maintain ride height or when air springs are constantly cycling. Top brands: Haldex, Hendrickson, Wabco.
Shock absorbers — Dampen spring oscillation and control body motion. Replace when leaking, bent, or when the truck exhibits excessive bounce or body roll. Top brands: Bilstein, Monroe, KYB.
Torque rods — Control axle position and prevent axle rotation under braking and acceleration torque. Replace when bushings are worn — worn torque rod bushings cause axle misalignment and accelerated tire wear. Top brands: Hendrickson, Reyco, Watson & Chalin.

Steer Axle Suspension and Steering Components

King pins and bushings — The pivot point for the steer axle knuckle. Replace when king pin play exceeds specification (typically 1/8 inch lateral play). Worn king pins cause tire wear, shimmy, and poor steering response. Top brands: Moog, Dana Spicer, Meritor.
Tie rod ends and drag links — Connect the steering gear to the steer axle knuckles. Replace when worn — loose tie rod ends cause wandering, tire wear, and loss of steering precision. Top brands: Moog, Dana Spicer, TRW.
Wheel bearings — Support the wheel hub on the spindle. Inspect and repack at every 100,000-mile service interval. Replace when worn, pitted, or when end play exceeds specification. Top brands: Timken, SKF, NTN.

Brake and suspension service intervals for Class 8 trucks

Every PM (25,000–30,000 miles): Inspect brake lining thickness, drum condition, slack adjuster operation, air spring condition, shock absorber condition, and all visible suspension hardware.
Every 100,000 miles: Full brake reline (shoes/linings, hardware kit, drums if needed), wheel bearing inspection and repack, king pin inspection, torque rod bushing inspection.
Every 200,000–300,000 miles: King pin replacement, complete suspension bushing replacement, shock absorber replacement, air spring replacement if not already done.

For related guides, see our articles on aftermarket truck parts deals and commercial truck parts distributors. For OEM brake specifications and service manuals, Bendix and Meritor publish free technical resources for all their brake and suspension product lines.

Conclusion

Maintaining the truck brake and suspension parts on a Class 8 truck is not optional — it is a federal safety requirement and the foundation of profitable, reliable trucking operations. Brake failures and suspension failures are among the leading causes of commercial truck accidents and out-of-service violations at roadside inspections.

Use the component guides, service intervals, and brand recommendations in this article to build a proactive maintenance program that keeps your trucks compliant, your drivers safe, and your maintenance costs predictable. The brands covered here — Bendix, Meritor, Haldex, Hendrickson, Firestone, and Moog — are the industry standards for a reason: they deliver the durability and performance that Class 8 operations demand.
